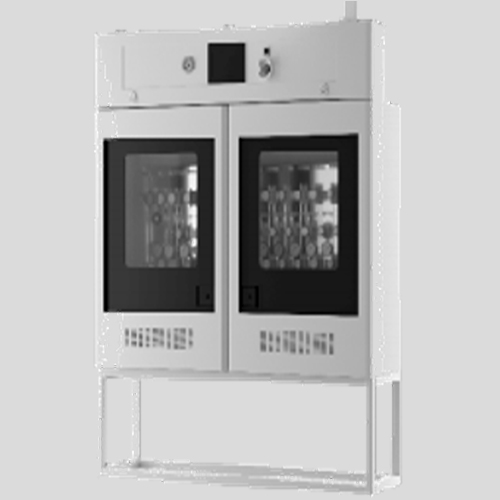

GC Fully Automatic Special Gas Holder
Specifications: Fully automatic, automatic switching, automatic purging.
Standard Equipment: Automatic switching, explosion-proof and corrosion-resistant cabinet.
External Purging: PN2, 1/4MVCR interface.
Explosion-proof self-locking door, explosion-proof glass observation window, leakage alarm.
Vacuuming: GN2, 1/4MVCR interface.
Remote shut-off, undervoltage alarm, main material SS316L.
Pneumatic Diaphragm Valve: 1/4 compression fitting interface.
Operating Interface: PLC control, 10-inch color touchscreen.
VENT Vent Pipe: 1/2MVCR interface.
Optional Equipment: Process gas overpressure alarm, panel heating and temperature control device.
Vacuum generator, high and low pressure venting.
Alarm signal SMS and telephone notification.
Panel Size: 1/4 panel.

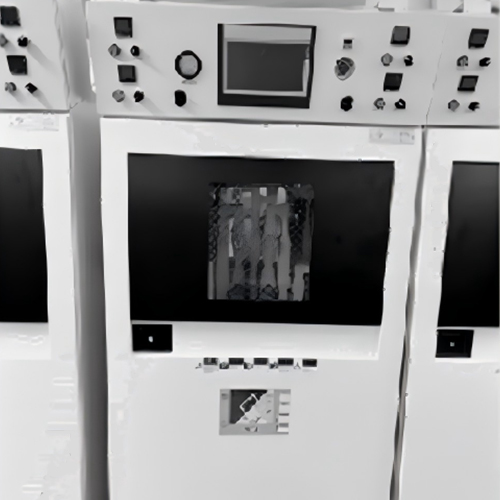

High-flow-rate specialty gas delivery equipment (BSGS)
Control cabinet power supply: Control power source 220VAC.50HZ, 500V;
Panel power supply 220VAC.50HZ, 1GKV/;
Vacuuming: GN2, V4MVCR interface
VENT evacuation pipe: 1/Z MVR connector C
Standard features: Automatic switching, automatic purging, explosion-proof and anti-magic cabinet.
Anti-glare self-locking door, explosion-proof glass observation window.
VMB Valve Distributor Box
Specifications: One inlet, multiple outlets.
VLNT vent pipe: 1/2MVCR interface.
Process gas: One inlet, N outlets (N=2-9).
Panel size: 1/4 to 1 inch panel.
Standard equipment: Explosion-proof and corrosion-resistant cabinet, explosion-proof self-locking door,
explosion-proof glass observation window, leakage alarm, main material 55315L.
Optional equipment: External purging, vacuuming, process gas overpressure alarm,
panel heating and humidity control device, alarm signal notification via SMS and telephone.

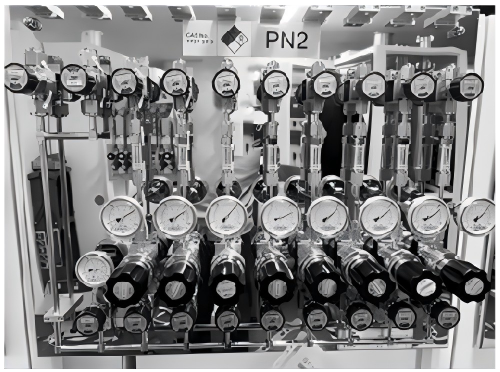

VMP Valve Distribution Panel
Panel-mounted integrated structure for easy installation.
Main material is SS316L stainless steel, making it more suitable for laboratory gases.
Metal diaphragm pressure reducing structure.
Hard-seal structure to prevent material aging and contamination.
Suitable for non-hazardous gases.
Diaphragm valve control, simple flow path, reliable operation, and long service life.
Pressure reducing valves and piping have undergone pressure resistance and leakage tests.
All diaphragm valve knobs have open and closed indicator windows.
